The TV-PC190 is a TRUE STANDALONE TV box with no software & driver required.
Watch TV, video, or play TV-games on any LCD or CRT monitor (no need to turn on PC).
With Picture In Picture (PIP) function, you can watch TV & using PC concurrent.
- 100% Compatible with Australia TV Systems -
- Description -
TV-PC190 is a portable TV tuner that transforms any VGA monitor into a high resolution TV with stereo sound! Built with a Philips silicon tuner, it supports worldwide TV and audio decoding standards, so you can watch TV wherever you are! TV-PC190 can output video at resolutions up to 1024x768, and its built-in deinterlacing engine gives you clear, sharp image quality that surpasses normal television sets. TV-PC190 is packed with additional features: inputs for S-Video and composite video sources, multi-channel preview of 9 channels on the same screen, customizable channel lists, adjustable video and audio settings, a multi-language user interface, and much more!
Connect your PC to TV-PC190 and enjoy an enhanced viewing experience - work on your computer while watching TV in a movable, resizable window! Easily switch between full-screen TV and your computer desktop with the press of a button on the included remote control! Whether in the office or in the home, TV-PC190 is the ultimate solution for your TV needs!
Supports worldwide TV standards
AV, S-Video input can connect camera, VCD, DVD, or TV game player
Full function remote controller, On-Screen-Display menu
Multi-Lingual Menu: English, French, Italian, German, and Spainish
Video System Support:
PAL e PAL-M : B/G/I/N/M/D/K
SECAM : LL/B/D/K1
NTSC : M/N/B
VGA resolution support:
640 x 400 (70Hz)
640 x 480 (60Hz, 66Hz, 72Hz, 75Hz, ou 85Hz)
800 x 600 (56Hz, 60Hz, 72Hz, 75Hz, ou 85Hz)
1024 x 768 (60Hz, 70Hz, 72Hz, 75Hz, ou 85Hz)
- Features -
Plug & Play solution: Pure hardware solution, no PC, no software, no drivers needed!
Supports worldwide TV standards: With support for TV standards including NTSC M/J and PAL/SECAM BG/DK/I/LL, you can watch TV wherever you are!
Enjoy stereo sound and multi-lingual broadcasts: Watch TV with full stereo sound and programs with multiple languages thanks to support for worldwide audio decoding standards including NICAM/A2/MTS/BTSC/EIAJ!
PIP Video-on-VGA display mode: When connected to a PC, you can watch TV in a movable, resizable window over your desktop!
Built-in TV channel table for 150 countries: TV-PC190 has preloaded channel tables for 150 countries for instant access to your local channels!
High quality deinterlacing engine: Deinterlacing gives you smooth, flicker free, sharp video.
9-Channel Preview: TV-PC190 gives you a quick glance at what’s on – perfect for channel surfing!
Multi-Lingual OSD for video and audio adjustment: Adjustment of brightness, contrast, and other video and audio settings is easy with an on screen interface available in multiple languages.
Sleep mode: Set hibernation mode to 30, 60, 90, 120 minutes: Watch TV for a set amount of time with sleep mode -- TV-PC190 will automatically shut itself off for you!
Autoscan TV frequencies for available channels: Find all available channels with automatic channel scanning
Remote control: The included remote gives you convenient control of your TV viewing experience!
Input
TV
RF 75 ohm IEC or Type-F connettore
S-Video in
4-pin
Mini-DIN jack
Composite video in
RCA
connector
VGA
in
8-pin
Mini-DIN connector
DC
in
5mm female DC power jack (inner+, outer-)
Audio
in
Stereo
audio (R/L) (RCA jack)
Output
VGA out
15-pin D-Sub female connector
Audio out
3.5mm
jack (green connector)
Tuner Module
All-in-one worldwide TV system
VGA Output Resolution
640x480, 800x600, or 1024x768
Stereo TV Decoding
Supports NICAM, A2, MTS, BTSC, and EIAJ audio decoding standards
- Package Include -
1 TV-PC190
1 Remote Control
1 VGA cable
1 manual
All necessary cables

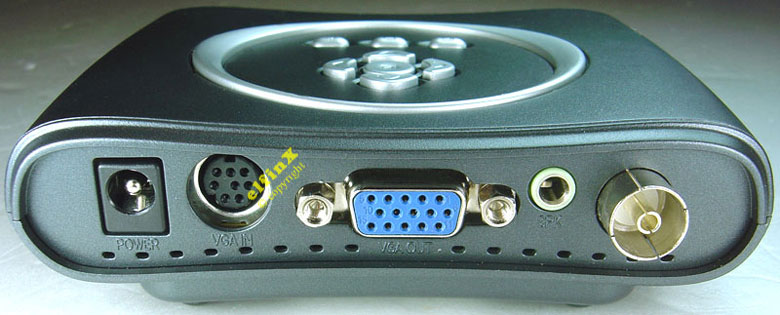

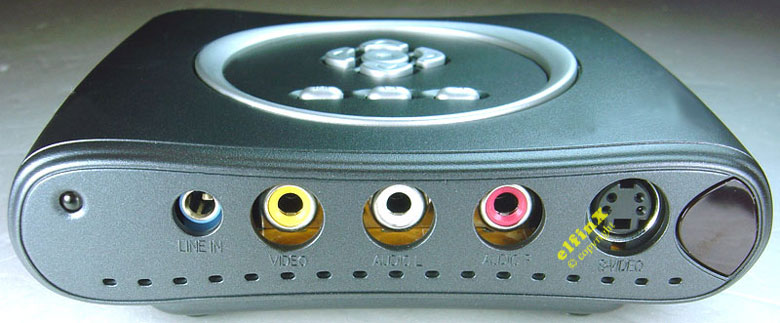

item is exactly the same as the following pictures
