DVD Quality Colour CCD Camera with IR & AUTO IRIS LENS


Model#: FC-2102

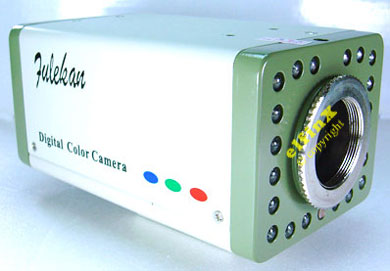

FC-2102


- Features -

  • Hight Resolution Slim Size Colour Professional 1/3" CCD Camera
  • Size: 6.5 cm (W) x 5.5 cm (H) x 11.2 cm (D)
  • Resolution: 752 x 582 (480TV lines) ; 1.0Lux F1.2
  • 20 Infrared Leds with sensor: ~10 metere (AUTO on/off)
  • Power Supply: DC12V 800MA (AC Adapter is NOT included)
- Package Include -

  • 1 x FC-2102 Camera
  • FC-2102 camera comes with
    ONE Auto IRIS Lens (choose 6mm or 16mm)

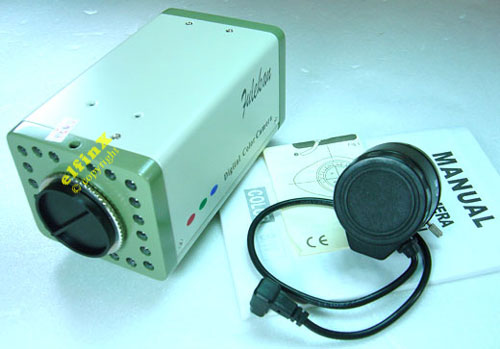

item is exactly the same as the following pictures
FC-2102 FC-2102
FC-2102
  1. Auto Iris Lens Terminal (LENS)
  2. Power Terminal
  3. Power Indicator
  4. Selectable White Balance Control Mode (HOLD/ATW)
  5. Selectable Back Light Compensation (OFF/BLC)
  6. Selectable Electronic Shutter Control (OFF/ESC)
  7. Level Turning For DC Type AI Lens Port
  8. Video Output Connector (BNC Type)
  9. Selectable AI Lens Type (Video/DC)

FC-2102
Bottom View
 FC-2102
Top View
FC-2102 FC-2102

   Auto IRIS Lens Options (FC-2102 comes with 1 IRIS lens):

- 6mm IRIS Lens -
   Angle:
   Distance:
    ~ 70°
   ~ 10meters

- 16mm IRIS Lens -
   Angle:
   Distance:
    ~ 30°
   ~ 30meters
